Specification
​

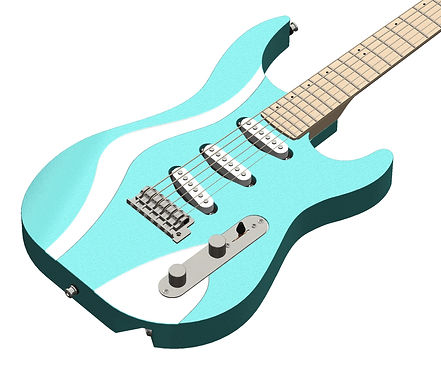

Body - Contoured with rebated art panels. Input jack maximised for wireless systems and angled to minimise contact with player and allow for the lead or wireless system to remain plugged in while on a stand.
​
Neck - 22 Fret Compound radius neck. 43mm at the nut with a 254mm radius. 57mm at the 22nd fret with a 356mm radius. Stainless steel corrosion resistant Jumbo Frets for effortless articulation of chords and clear tone while playing single notes. The frets are dressed with no exposed ends. Graph Tech Black 43mm nut. The neck is thin and extremely playable - 20mm at the first fret, 22mm at the 12th fret.
Tuners - Gotoh Magnum Lock-Trad 6-In-Line Tuners
Pull the string taught through the tuner hole, and with a twist of the thumbwheel the string is locked into the post. Just a few turns of the tuner knob and you're up to pitch. Since there's just a partial wrap of string around the post, tuning stability is dramatically improved. Rock Solid™ string posts eliminate looseness and reduce backlash for improved tuning stability. No more wobbly string posts to cause tuning problems. Two post heights eliminate the need for string trees. The Lubri-Coat™ process electro-coats the gears with a special polymer layer. This eliminates the need for oil and keeps the lubrication where it’s needed, for the life of the tuner.
Bridge - Gotoh 510T-BS2 Modern Style Tremelo Bridge. Brass saddles. 10.8mm Saddle Spacing.
Babicz Full Contact Upgrade available.
​
Selection Switch - Oak Grigsby 3-way Selector Switch.
​
Volume Pot - 250k Pentiometer.
​
Tone Pot - The Treble Bass Expander (TBX) is a stacked and detented 250K/1Meg potentiometer that expands your tonal palette. The control has a centre detent. Set here, it’s like a regular tone control, wide-open. Turn it counter-clockwise and highs vanish, per usual. But when you rotate clockwise, the absence of lows makes glassy highs erupt.
Technically, it’s not a boost, but it sure feels and sounds like one. It pushes you through the mix by frequency shifting without raising your volume – all at your guitar.
TRS 1/4" Barrel input Jack
​
Covers and Neck Plate - Laser Cut Stainless Steel to ensure non cracking or breaking, non rusting usage.
​
Strap Pins - Locking Schaller or Grover.
​
Pickups - Tonerider City Limits. Two fat, full neck and mid pickups mixed with a hotter bridge. A rich bass and tempered bell-like trebles make this a set for the bluesman and rocker alike! The City Limits set uses A5 magnets with "Modified Vintage Stagger" allowing for great string to string balance on a wide range of instruments. Each pickup is fully wax potted to reduce any microphonic feedback.
Neck 6.0k / Mid 6.1k / Bridge 8.9k
Fender Custom Shop / Dimarzio / Lace Sensor / Seymour Duncan upgrades available.
